Item: 4016-03 Rail Car Stops
CS-2 Self-Tightening Car Stop Car Stop is assembled on head of rail by tightening 5 bolts and driving wedge from the rear. Weight 107lbs
Car Stops and Bumping Posts for Freight Cars Learn More
Multiple Uses of Rail Car Stops
We have three levels of car stopping products based on frequency of use and the length of the train that will make contact with the stop.
Car stops are sold in single units but should always be used in pairs.
- Car Stops and Bumping Posts are for use on flat track only at a slow speed (1-3 mph).
- Car Stops are not equal in stopping capacity to a Bumping Post. Limit use of car stops to lightly travelled side tracks, where one to two cars maximum are being moved.
- Provide ample space between car stops and object to be protected.
- Use a signalman to guide locomotive engineer as cars approach stop or post. Repeated impacts will weaken stops and posts.
4016-05-L Rail Car Stops

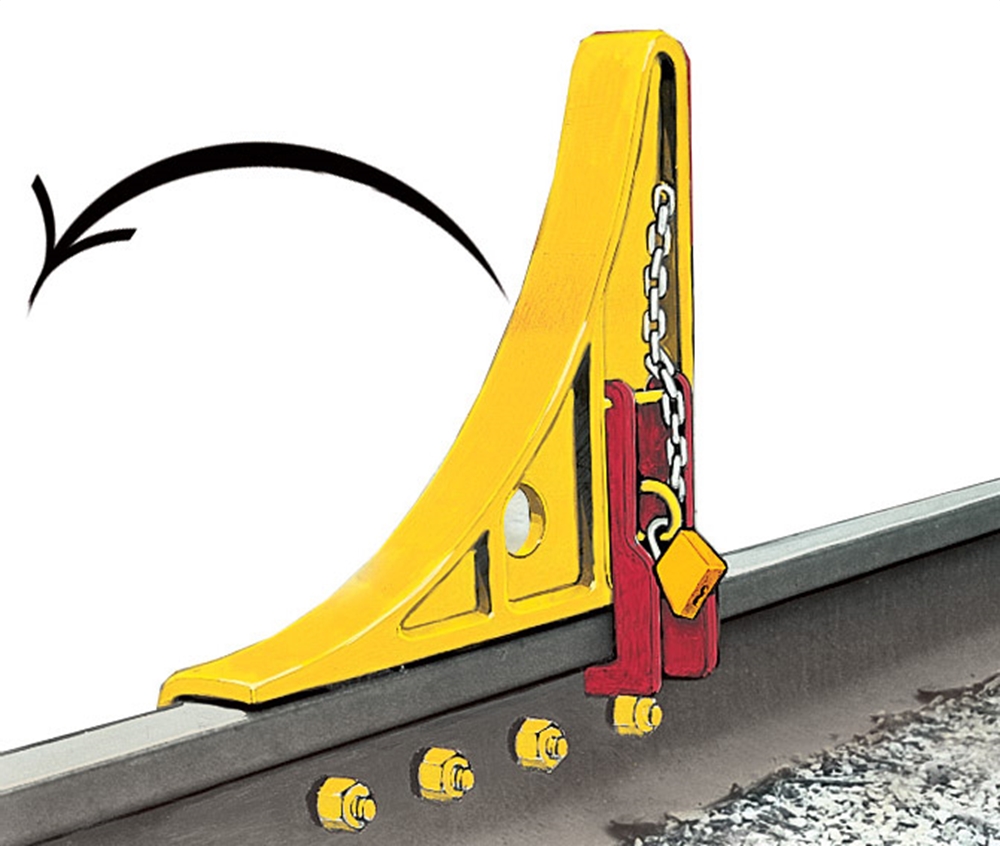

CS-3X Hinged Locking Left Hand Car Stop Car Stops for flat track only and must be used in pairs. Folds away from rail to outside of track. Equipped with padlock for locking in upward/lowered position. Rails 60lbs and up. Weight 94lbs.
4016-05-R Rail Car Stops

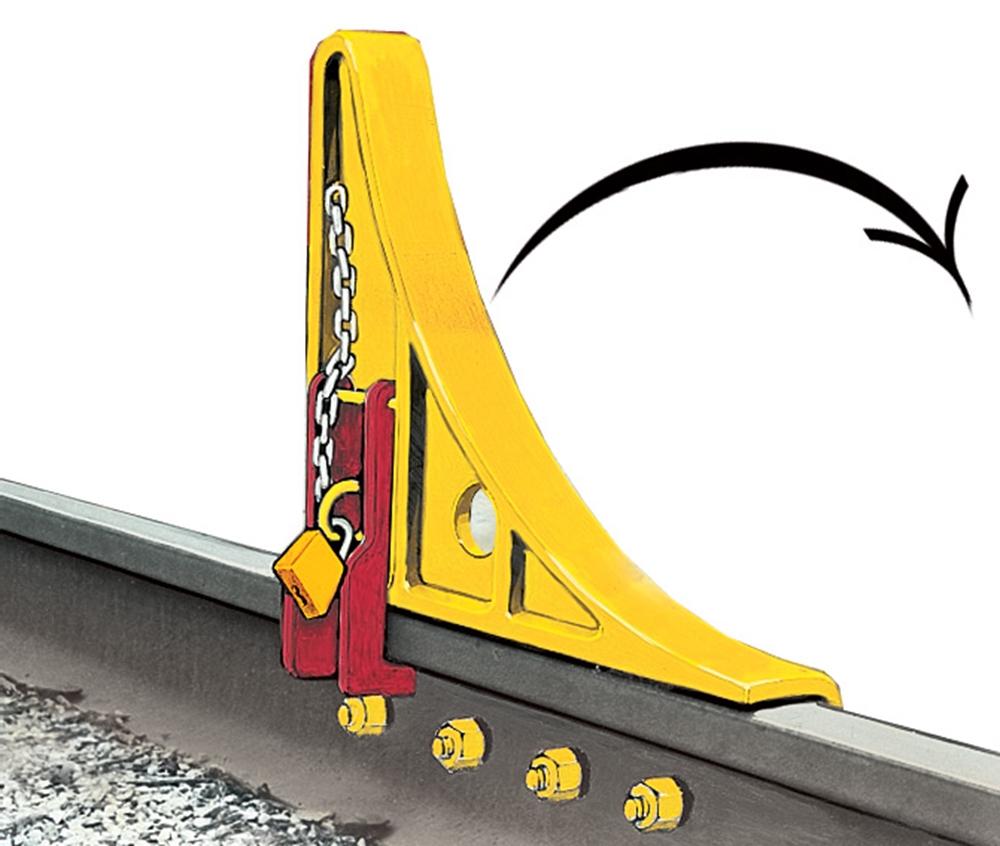

CS-3X Hinged Locking Right Hand Car Stop Car Stops for flat track only and must be used in pairs. Folds away from rail to outside of track. Equipped with padlock for locking in upward/lowered position. Rails 60lbs and up. Weight 94lbs.
4016-06 Rail Car Stops

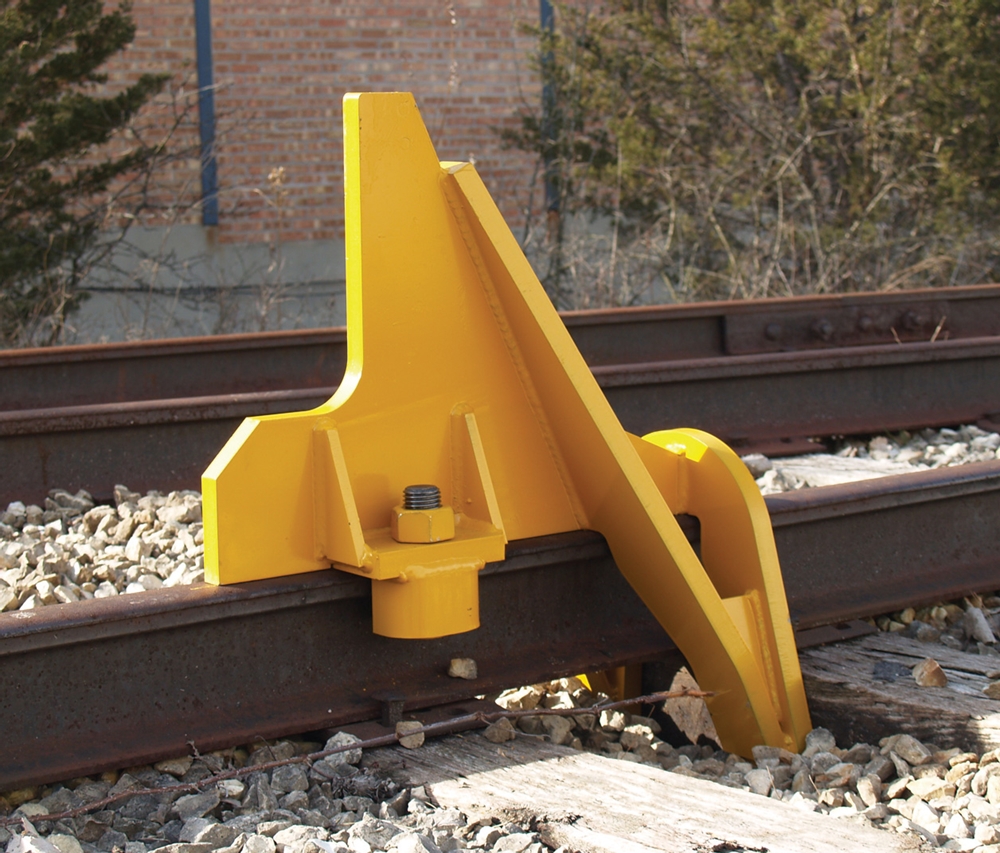

Uses the cushioning capacity of the tie and a wheel-bump feature to lift the wheel slightly off the rail to absorb momentum of moving car. Recommended for industrial spur tracks which do not require a bumping post but which need more protection.
