Item: 4016-21 Crane Stops
Non-Slide Bumper Crane Stop Wedge stands 15 inches above top of rail. Underside of crane bumper should not be more than 12" above top of rail. Specify rail size and section.
Crane Stops Learn More
Isolate a Crane Undergoing Repairs
Cushion-Slide Crane Stops
Cushioned crane stops are for temporary isolation of overhead cranes. Such isolation is necessary when one crane is undergoing maintenance with active cranes on the same runway or personnel are working on or near the crane runway.
Protect Workers from Crane Overrun
Non-Slide Crane Stops
Recommended wherever below rail head clearance is minimal and where a non-sliding crane stop is needed. Wedge dogs lock wedge to rail head and do not interfere with hook bolts. On impact, stops slide only marginally or not at all. Do not use at end of crane run.

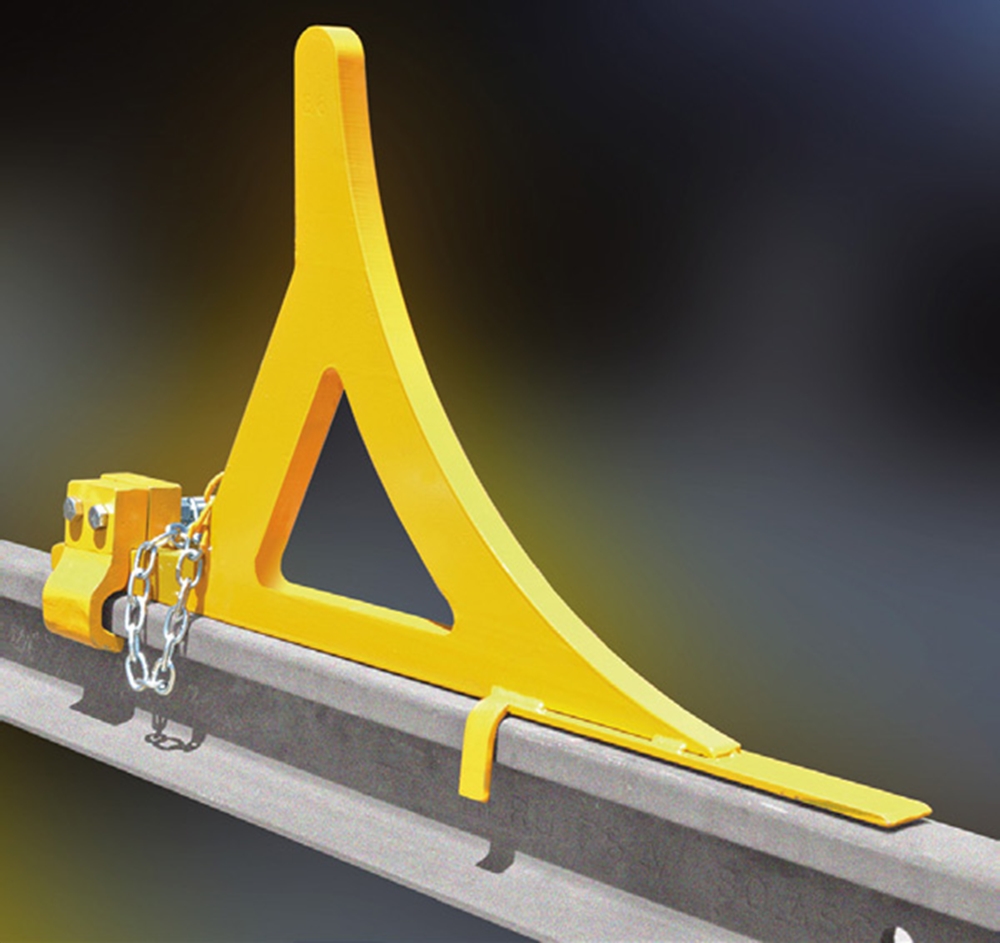

4016-20 Crane Stops
Non-Slide Wheel Contact Crane Stop Use wherever below rail head clearance is minimal and where a non-sliding crane stop is needed. Wedge dogs lock wedge to rail head and do not interfere with hook bolts. On impact, stops slide only marginally or not at al

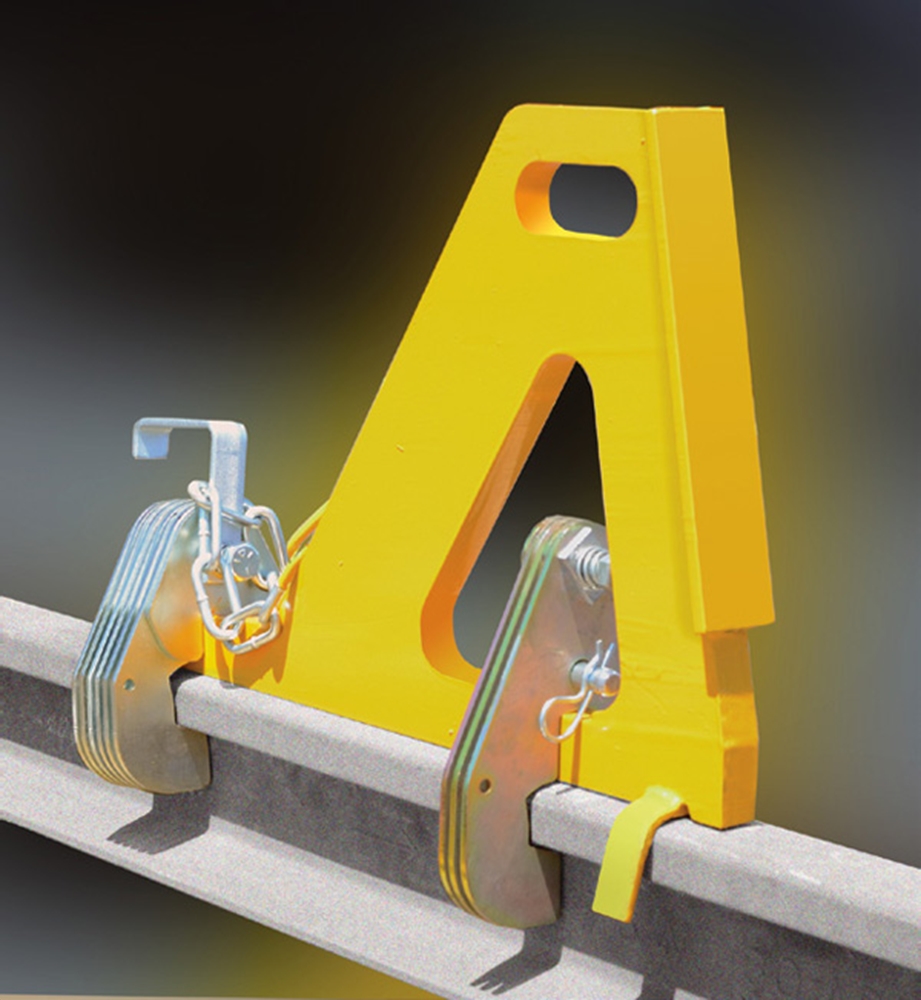

4016-08 Crane Stops
Cushion-Slide Bumper Contact Crane Stop Wedge stands 15” above top of rail. All standard crane bumper heights can be accommodated. Cinch plates are made to fit a specific rail size and section.

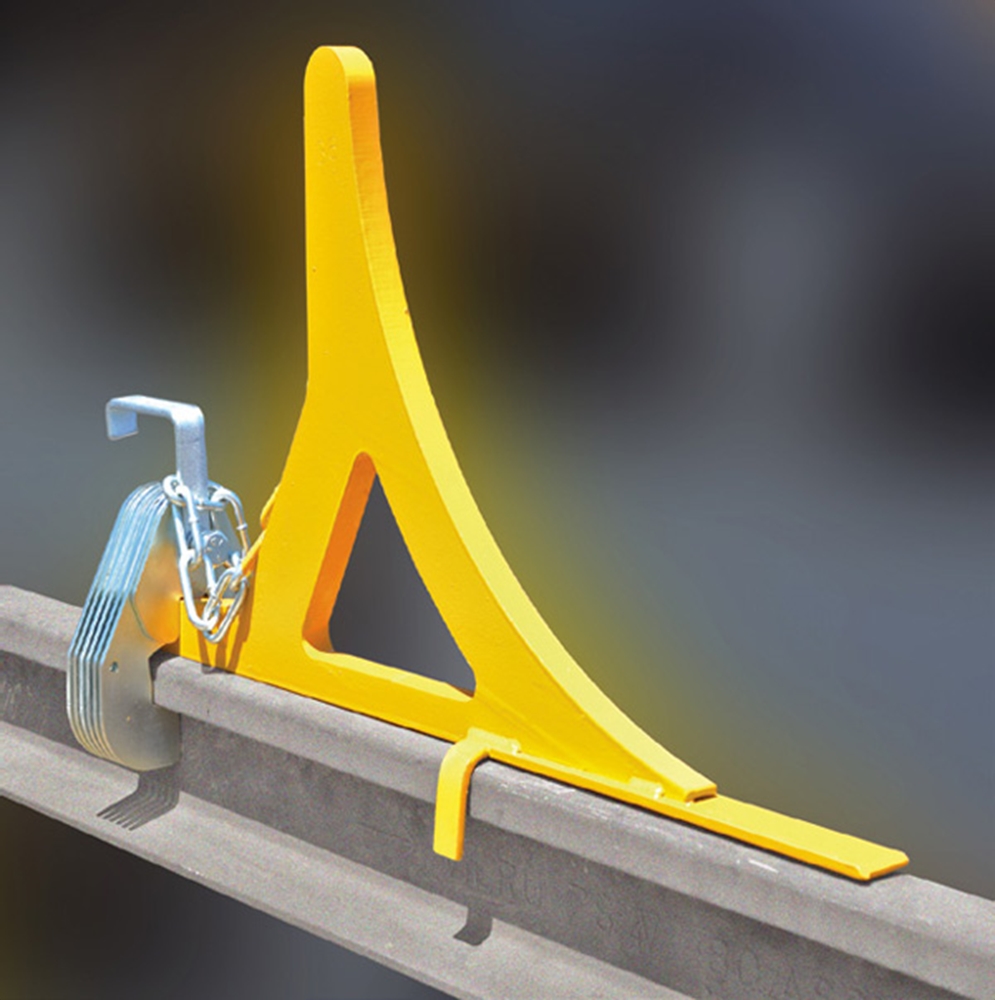

4016-07 Crane Stops
Cushion Slide Wheel Crane Stops Wedges made to fit a specific wheel diameter. Wedges meet OSHA regulation that half the wheel diameter is covered. Cinch plates are made for a specific rail size and section.
